Hidravlična batna črpalka Rexroth
Rexroth hidravlična batna črpalka s spremenljivo prostornino 31/32 serija A10V A10vo A10vso 18 28 45 71 100 140
Vsi izdelki HYLEMAN so popolnoma enakovredni in zamenljivi z originalom.
Lastnosti
1. Variabilna črpalka z aksialno batno rotacijsko skupino v izvedbi s pregibno ploščo za hidrostatične pogone v odprtem tokokrogu.
2. Pretok je sorazmeren s hitrostjo pogona in premikom.
3. Pretok je mogoče neskončno spreminjati s prilagajanjem kota pregibne plošče.
4. 2 odtočni odprtini
5. Odlična sesalna zmogljivost
6. Nizka raven hrupa
7. Dolga življenjska doba
8. Ugodno razmerje moč/teža
9. Vsestranski obseg krmilnikov
11. Kratek nadzorni čas
12. Prehodni pogon je primeren za dodajanje zobniških črpalk in aksialnih batnih črpalk do enake velikosti, tj. 100 % pretočni pogon.
13. Primerno za delovanje z mineralnim oljem in HF hidravličnimi tekočinami.

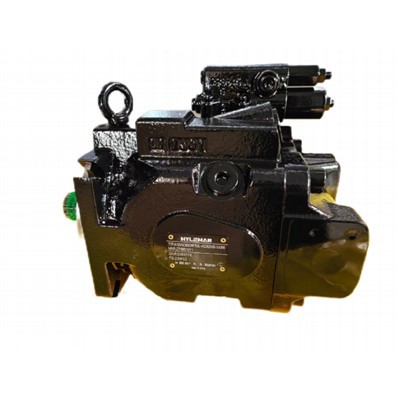

Podrobne slike
Opis modela
A10VSO 30 31 52 53 serije A10VO18, A10VO28, A10VO45, A10VO71, A10VO100, A10VO140 Rexroth hidravlična batna črpalka
| Vnesite kodo | |||||||||||||||||||||||||
| Vnesite kodo | |||||||||||||||||||||||||
| 01 02 03 04 05 06 07 08 09 10 11 12 13 | |||||||||||||||||||||||||
| A10V(S) | O | / | 31 | - | V | ||||||||||||||||||||
| Različica 18 28 45 71 88 100 140 | |||||||||||||||||||||||||
| 1 | Standardna različica (brez kode) | ||||||||||||||||||||||||
| Različica za visoke hitrosti (zunanje mere so enake standardni različici) | - | - | - | H | |||||||||||||||||||||
| Aksialna batna enota | |||||||||||||||||||||||||
| 2 | Izvedba pregibne plošče, spremenljiva, nazivni tlak 280 barov, maksimalni tlak 350 barov | - | - | - | - | - | - | A10VS | |||||||||||||||||
| - | A10V | ||||||||||||||||||||||||
| Način delovanja | |||||||||||||||||||||||||
| 3 | Črpalka, odprt krog | O | |||||||||||||||||||||||
| Velikost (NG) | |||||||||||||||||||||||||
| 4 | Geometrijski premik, glejte tabelo vrednosti na straneh 6 in 7 | 18 | 28 | 45 | 71 | 88 | 100 | 140 | |||||||||||||||||
| Nadzorna naprava | |||||||||||||||||||||||||
| 5 | Dvotočkovno krmiljenje, neposredno upravljanje | GD | |||||||||||||||||||||||
| Hidravlični regulator tlaka | DR | ||||||||||||||||||||||||
| s hidravličnim regulatorjem pretoka | XT odprt | DFR | |||||||||||||||||||||||
| XT priključen s funkcijo splakovanja | DFR1 | ||||||||||||||||||||||||
| XT priključen brez funkcije splakovanja | DRSC | ||||||||||||||||||||||||
| z regulacijo pretoka in diferenčnega tlaka, električno variabilna | EF1) | ||||||||||||||||||||||||
| z izklopom tlaka | hidravlično daljinsko upravljanje | DRG | |||||||||||||||||||||||
| električni negativni nadzor | U = 12 V | ED71 | |||||||||||||||||||||||
| U = 24 V | ED72 | ||||||||||||||||||||||||
| električna pozitivna kontrola | U = 12 V | ER71 | |||||||||||||||||||||||
| U = 24 V | ER72 | ||||||||||||||||||||||||
| Regulacija moči tlaka in pretoka | - | DFLR | |||||||||||||||||||||||
| serija | |||||||||||||||||||||||||
| 6 | Serija 3, indeks 1 | 31 | |||||||||||||||||||||||
| Smer vrtenja | |||||||||||||||||||||||||
| 7 | Gledano na pogonsko gred | v smeri urinega kazalca | R | ||||||||||||||||||||||
| v nasprotni smeri urnega kazalca | L | ||||||||||||||||||||||||
| Tesnilni material | |||||||||||||||||||||||||
| 8 | FKM (fluoroelastomer) | V | |||||||||||||||||||||||
| Pogonska gred 18 28 45 71 88 100 140 | |||||||||||||||||||||||||
| 9 | Zglobna gred ANSI B92.1a | standardna gred | S | ||||||||||||||||||||||
| podobno gredi "S", vendar za višji vhodni navor | - | - | R | ||||||||||||||||||||||
| zmanjšan premer, omejena primernost za prehodni pogon (glej tabelo vrednosti, stran 9) | ○ | U | |||||||||||||||||||||||
| enako kot "U", višji navor; omejena primernost za prehodni pogon (glej tabelo vrednosti, stran 9) | - | W | |||||||||||||||||||||||
| Montažna prirobnica | |||||||||||||||||||||||||
| 10 | ISO 3019-1 (SAE) | 2-luknja | C | ||||||||||||||||||||||
| 4-luknja | - | - | - | - | - | - | D | ||||||||||||||||||
| 1) Glej podatkovni list 92709 | |||||||||||||||||||||||||
| Vnesite kodo | |||||||||||||||||||||||
| 01 02 03 04 05 06 07 08 09 10 11 12 13 | |||||||||||||||||||||||
| A10V(S) | O | / | 31 | - | V | ||||||||||||||||||
| Delovna vrata 18 28 45 71 88 100 140 | |||||||||||||||||||||||
| 11 | Prirobnice SAE v skladu z J518 | Pritrdilna nit | ne za skozen pogon | - | - | - | 11 | ||||||||||||||||
| Delovna pristanišča | metrika; zadaj | - | - | - | - | - | 41 | ||||||||||||||||
| metrika | Pritrdilna nit | za skozi pogon | - | - | 12 | ||||||||||||||||||
| metrika; stransko zgoraj spodaj | - | - | - | - | - | 42 | |||||||||||||||||
| Prirobnice SAE v skladu z J518 | Pritrdilna nit | ne za skozen pogon | - | - | - | 61 | |||||||||||||||||
| Delovna pristanišča | UNF; zadaj | - | - | - | - | - | 91 | ||||||||||||||||
| UNF | Pritrdilna nit | za skozi pogon | - | - | 62 | ||||||||||||||||||
| UNF; stransko zgoraj spodaj | - | - | - | - | - | 92 | |||||||||||||||||
| Skozi pogon (za možnosti namestitve glejte stran 53) | |||||||||||||||||||||||
| 12 | Prirobnica ISO 3019-1 Pesto za utorno gred2) | 18 28 45 71 88 100 140 | |||||||||||||||||||||
| Premer Premer | |||||||||||||||||||||||
| brez skoznega pogona | N00 | ||||||||||||||||||||||
| 82-2 (A) | 5/8 v 9T 16/32DP | K01 | |||||||||||||||||||||
| 3/4 v 11T 16/32DP | K52 | ||||||||||||||||||||||
| 101-2 (B) | 7/8 v 13T 16/32DP | - | K68 | ||||||||||||||||||||
| 1 v 15T 16/32DP | - | - | K04 | ||||||||||||||||||||
| 127-2 (C) | 1 1/4 v 14T 12/24DP | - | - | - | K07 | ||||||||||||||||||
| 1 1/2 v 17T 12/24DP | - | - | - | - | - | K24 | |||||||||||||||||
| 152-4 (D) 1 3/4 v 13T 8/16DP | - | - | - | - | - | - | K174) | ||||||||||||||||
| Konektorji za solenoide3) | |||||||||||||||||||||||
| 13 | Brez konektorja (brez solenoida, samo s hidravličnim krmiljenjem, brez kode) | ||||||||||||||||||||||
| DEUTSCH - ulit konektor, 2-pin, brez dušilne diode | P | ||||||||||||||||||||||
| = Na voljo ○=Na zahtevo -=Ni na voljo | |||||||||||||||||||||||
| Obvestilo | |||||||||||||||||||||||
| Upoštevajte opombe o načrtovanju projekta na strani 59. | |||||||||||||||||||||||
| Prosimo, da ob oddaji naročila poleg kode tipa navedete ustrezne tehnične podatke. | |||||||||||||||||||||||
| Serija A10VSO 18 | |
| A10VSO18DR/31R-PPA12N00 | A10VSO18DFLR/31R-PPA12N00 |
| A10VSO18DR/31R-PPA12K01 | A10VSO18DG/31R-PPA12N00 |
| A10VSO18DFR1/31R-PPA12N00 | A10VSO18DRG/31R-PPA12N00 |
| A10VSO18DFR1/31R-PPA12N00 | A10VSO18DFE1/31R-PPA12N00 |
| A10VSO18DFR1/31R-PPA12K01 | A10VSO18FHD/31R-PPA12N00 |
| A10VSO18DFR/31R-PPA12N00 | A10VSO18ED/31R-PPA12N00 |
| Serija A10VSO 28 | |
| A10VSO28DR/31R-PPA12N00 | A10VSO28DFLR/31R-PPA12N00 |
| A10VSO28DR/31R-PPA12K01 | A10VSO28DG/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12N00 | A10VSO28DRG/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12N00 | A10VSO28DFE1/31R-PPA12N00 |
| A10VSO28DFR1/31R-PPA12K01 | A10VSO28FHD/31R-PPA12N00 |
| A10VSO28DFR/31R-PPA12N00 | A10VSO28ED/31R-PPA12N00 |
| Serija A10VSO 45 | |
| A10VSO45DR/31R-PPA12N00 | A10VSO45DFR/31R-PPA12K26 |
| A10VSO45DR/31R-PPA12K01 | A10VSO45DFLR/31R-PPA12N00 |
| A10VSO45DFR1/31R-PPA12N00 | A10VSO45DG/31R-PPA12N00 |
| A10VSO45DFR1/31R-PPA12N00 | A10VSO45DRG/31R-PPA12N00 |
| A10VSO45DFR1/31R-PPA12K02 | A10VSO45DFE1/31R-PPA12N00 |
| A10VSO45DFR/31R-PPA12N00 | A10VSO45FHD/31R-PPA12N00 |
| A10VSO45DFR/31R-PPA12K01 | A10VSO45ED/31R-PPA12N00 |
| Serija A10VSO 71 | |
| A10VSO71DR/31R-PPA12N00 | A10VSO71DFR/31R-PPA12K27 |
| A10VSO71DR/31R-PPA12K01 | A10VSO71DFLR/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12N00 | A10VSO71DG/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12N00 | A10VSO71DRG/31R-PPA12N00 |
| A10VSO71DFR1/31R-PPA12K02 | A10VSO71DFE1/31R-PPA12N00 |
| A10VSO71DFR/31R-PPA12N00 | A10VSO71FHD/31R-PPA12N00 |
| A10VSO71ED/31R-PPA12N00 | |
A10VSO 100 serije:, A10VSO100DR/31R-PPA12N00, A10VSO100DR/31R-PPA12K01, A10VSO100DFR1/31R-PPA12N 00, A10VSO100DFR1/31R-PPA12N00,, A10VSO100DFR1/31R-PPA12K01 A10VSO100DFR/31R-PPA12N00,, A10VSO100DFLR/31R-PPA12N00, A10VSO100DG/31R-PPA12N00,, A10VSO100DRG/31R-PPA12N{{330} }, A10VSO100DFE1/31R-PPA12N00,, A10VSO100DFE1/31R-PPA12K02, A10VSO100FHD/31R-PPA12N00 R902405606 A10VO100DFR1/31R-VSC62N00, R902411500 A10VSO45DFLR/31R-VPA12N00 145N R902424086 A10VO71DFR1/31R-VSC62N00, R902429793 A10VSO140DFLR/31R-VPB12N00 265N R902431762 A10VSO28DFLR/31R-VPA12N00 35N, R902443895 A10VSO45DFLR/31R-VPA12N00 50N R902456902 A10VO71DFR1/31R-VSC62K68, R902459592 A10VSO140DFR1/31R-VPB12K68 R902460463 A10VSO100DFLR/31R-VPA12N00 140N, R902460861 A10VO45DFR1/31L-VSC62K68 R902460920 A10VSO28DFLR/31R-VPA12N00 100N, R902460921 A10VSO28DFLR/31R-VPA12N00 50N R902460922 A10VSO45DFLR/31R-VPA12N00 100N, R902460923 A10VSO71DFLR/31R-VPA12N00 156N R902460924 A10VSO71DFLR/31R-VPA12N00 240N, R902460925 A10VSO100DFLR/31R-VPA12N00 120N R902460926 A10VSO100DFLR/31R-VPA12N00 200N, R902460927 A10VSO100DFLR/31R-VPA12N00 245N R902460928 A10VSO100DFLR/31R-VPA12N00 300N, R902460929 A10VSO140DFLR/31R-VPB12N00 300N R902460930 A10VSO140DFLR/31R-VPB12N00 245N, R902460962 A10VO71DFR1/31L-VSC62K68 R902461113 A10VO28DFR1/31L-VSC62K01, R902461114 A10VO28DFR1/31L-VSC62N00 R902461115 A10VO45DFR1/31R-VSC62K68, R902461116 A10VO71DFR1/31R-VSC62K01 R902461117 A10VO71DFR1/31L-VSC62N00, R902461228 A10VSO45DFR1/31R-VPA12K68 R902461229 A10VSO71DFR1/31R-VPA12K68, R902461230 A10VSO100DFR1/31R-VPA12K68 R910903160 A10VSO28DFR/31R-PPA12N00, R910903163 A10VSO28DR/31R-PPA12N00 R910906900 A10VO100DFR/31R-PSC62N00, R910907323 A10VO100DFR/31L-PSC62N00 R910907402 A10VO28DFR/31R-PSC62N00, R910907403 A10VSO45DR/31R-PPA12N00 R910907404 A10VO45DFR/31R-PSC62K01, R910907918 A10VO45DFR1/31R-PSC62K04 R910907919 A10VSO28DR/31R-PPA12K01, R910908655 A10VO28DFR/31R-PSC62K01 R910908725 A10VSO45DFR1/31R-PPA12N00, R910909288 A10VO45DFR1/31L-PSC62N00 R910909613 A10VSO45DFR/31R-PPA12K01, R910909949 A10VO45DFR/31L-PSC62K01 R910910181 A10VO45DFR1/31R-PSC62N00, R910910590 A10VSO28DFR1/31R-PPA12N00 R910911010 A10VSO45DFR/31R-PPA12K26, R910911737 A10VO28DFR1/31R-PSC61N00 R910912007 A10VSO100DR/31R-PPA12N00, R910915421 A10VO28DR/31R-PSC62K01 R910916472 A10VO45DFR1/31L-PSC62K01, R910916931 A10VO45DFR1/31R-PSC62K01 R910920557 A10VO45DFR1/31R-PSC62K02, R910921546 A10VSO140DFR1/31R-PPB12N00 R910922744 A10VSO100DFR1/31R-PPA12N00, R910922947 A10VO28DFR1/31L-PSC62K01 R910922983 A10VSO140DR/31R-PPB12N00, R910923181 A10VO28DFR1/31R-PSC62K01 R910926318 A10VSO28DFR1/31R-PPA12K01, R910927068 A10VSO45DFR1/31R-PPA12K02 R910927083 A10VSO100DFR1/31R-PPA12K02, R910927126 A10VSO140DFR1/31R-PPB12K02 R910932852 A10VSO140DRG/31R-PPB12N00, R910934823 A10VSO100DFLR/31R-PPA12N00 R910935974 A10VSO140DFLR/31R-PPB12N00, R910935975 A10VSO45DFLR/31R-PPA12N00 R910936059 A10VSO28DFLR/31R-PPA12N00, R910936062 A10VSO28DFLR/31R-PPA12N00 R910936094 A10VSO140DFLR/31R-PPB12N{{800}}, R910936130 A10VSO28DFLR/31R-PPA12N00 R910936207 A10VSO100DFLR/31R-PPA12N00, R910936473 A10VSO100DFLR/31R-PPA12N00 R910936738 A10VSO100DFLR/31R-PPA12N00, R910936739 A10VSO45DFLR/31R-PPA12N00 R910936790 A10VSO100DFLR/31R-PPA12N00, R910936910 A10VSO45DFLR/31R-PPA12N00 R910936912 A10VSO45DFLR/31R-PPA12N00, R910938804 A10VSO18DFR1/31R-PUC62N00 R910938977 A10VSO140DFLR/31R-PPB12N00, R910939026 A10VSO28DFLR/31R-PPA12N00 R910939120 A10VO71DFR/31R-PSC62N00. R910939183 A10VSO45DFR/31R-PPA12N00 R910939192 A10VSO140DFR/31R-PPB12N00, R910939643 A10VSO100DFR/31R-PPA12N00 R910940045 A10VO100DFR1/31L-PSC62N00, R910940520 A10VSO18DFR/31R-PPA12N{{1004}} R910940582 A10VSO45DFLR/31R-PPA12N00, R910940787 A10VO28DFR/31L-PSC62N00 R910940936 A10VSO28DFLR/31R-PPA12N00, R910941109 A10VSO140DFLR/31R-PPB12N00 R910941657 A10VO71DFR1/31R-PSC62N00, R910942503 A10VSO18DR/31R-PPA12N00 R910942635 A10VSO71DFR/31R-PPA12N00, R910942654 A10VSO71DFLR/31R-PPA12N00 R910942696 A10VO28DFR1/31R-PSC62N00, R910943343 A10VO45DFR1/31R-PSC61N00 R910943468 A10VSO100DFLR/31R-PPA12N00, R910943655 A10VO45DFR/31R-PSC62N00 R910943841 A10VSO140DFLR/31R-PPB12N00, R910944032 A10VSO100DFLR/31R-PPA12N00 R910944067 A10VSO71DFLR/31R-PPA12N00, R910944195 A10VO71DFR1/31L-PSC62N00 R910944440 A10VSO71DFR1/31R-PPA12N00, R910944502 A10VSO71DFLR/31R-PPA12N00 R910944730 A10VSO71DFLR/31R-PPA12N00, R910945133 A10VSO71DR/31R-PPA12N00 R910945178 A10VSO18DFR1/31R-PPA12N00, R910945653 A10VO71DFR1/31R-PSC61N00 R910946188 A10VO71DFR/31L-PSC62N00, R910946661 A10VO71DFR1/31L-PSC62K01 R910947666 A10VSO18DFR/31L-PSC62N00, R910947870 A10VO71DFR1/31L-PSC62K02 R910947872 A10VSO71DFR1/31R-PPA12K02 .R910948654 A10VSO71DFLR/31R-PPA12N00 R910948790 A10VSO71DFLR/31R-PPA12N00, R910961216 A10VSO71DFLR/31R-PPA12N00 R910970014 A10VO45DFR/52R-PSC64N00 ,R910974886 A10VO60DFR1/52R-PSD61N00 R910988126 A10VSO10DR/52R-PKC64N00, R910988128 A10VSO10DFR1/52R-PKC64N00 R910990406 A10VSO10DR/52R-PPA14N00, R910990987 A10VSO10DFR1/52R-PPA14N00 A10VSO18DFR1/31R-PPB12N{{1300}}, A10VS018DFR1/31R-PPB12N00, A10VS018DR/31R-PPA12N00, A10VSO18DR/31R-PPA12N00, A10VSO18DFR1/31R-PPA12N00, A10VSO18DFR1/31R-PPB12NOO A10VS018DFR1/31R-PPB12NOO, A10VSO18DR/31R-PPA12N00, A10VSO28DR/31R-PPA12N00 A10VS028DR/31R-PPA12N00, A10VO28DR/31R-PSC12N00, A10VSO28DRF1/31R-PSA12N00 A10VSO28DFR1/31R-PPA12N00, A10VSO28DFR1/31R-PPA12N00, A10VS028DFR1/31R-PPA12N00 A10VSO28DFR/31R-PSA12N00, A10VO28DFR1/31L-PSC62N00, A10VO28DFR1/31R-PSC62N00 A10VS045DR/31R-PPA12N00, A10VSO45DR/31R-PPA12N00, A10VS045DFR1/31R-PPA12N00 A10VSO45DFR1/31R-PPA12N00, A10VSO45DFR1/31R-PPA12N00, A10VO45DFR1/31R-PSC62K02 A10VSO45DFR1/32R-PPB12N00, A10VSO71DFR1/31R-PPA12N00, A10VS071DFR1/31R-PPA12N00 A10VSO71DFR1/31R-PPA12KB5, A10VSO71DFR/31R-PSC62K07, A10VSO71DFR1/31R-PPA12N00 A10VS071DFR1/31R-PPA12N00, A1OVSO71DFR1/31R-PPA12N00, A1OVS071DFR1/31R-PPA12N00 A10VSO71DFR1/31R-PPA12N00, A10VSO71DFR1/32R-VPB22U99, A10VSO71DFR1/31R-PPB12NOO EA10VSO71DR/31R-PPA12N00, A10VSO71DR/31R-PPA12N00, A10VSO100DR/31R-PPA12N00 A10VS0100DR/31R-PPA12N00, A10VSO100DR/31R-VPA12N00, A10VS0100DR/31R-VPA12N00 A10VSO100DFR1/31R-PPA12N00, A10VS0100DFR1/31R-PPA12N00, A10VSO100DR/31R-PPA12N00 A10VSO100DFR1/31R-VPB12N00, A10VS0100DFR1/31R-VPB12N00, A10VSO100DFR1/31R-PPB12N00 A10V0100DR/31R-PSC11N00, A10VS0100DR/31R-PTA12N00, A10VSO140D/31R-PPB12N00 A10VSO140DR/31R-PPB12N00, A10VS0140DR/31R-PPB12N00, E-A10VSO140DFR1/31R-PPA12N00 A10VSO140DFR1S/31R-PPB12N00, A10VSO140DFR1/31R-PPB12N00, A10VS0140DFLR/31R-PPB12N00 A10VSO140DR/31R-PPB12N00, A10VS0140DR/31R-PPB12NOO, A10VSO140DR/31R-VPB12N00 A10VSO140DR/31R-VPB22U99, A10VSO140DFR1/31R-PPB12N00
Profil podjetja
Slike paketov
Razstave
Naše prednosti
1. Vrhunska kakovost
Glede na 20 let izkušenj pri načrtovanju, raziskavah, razvoju in proizvodnji hidravličnih črpalk imamo vrhunsko kakovost v primerjavi z domačimi in čezmorskimi proizvajalci, vsi naši izdelki imajo 1-letno garancijo.
2. Strog sistem nadzora kakovosti
Imamo najstrožji sistem nadzora kakovosti, vsi naši izdelki so 100-odstotno testirani pred odpremo in vsak od njih ima eno kodo za sledenje, da zagotovimo, da so dobre kakovosti za naše stranke.
3. Napredna strojna oprema
Vsi stroji, ki jih imamo, so novi CNC stroji, ki smo jih uvozili iz Nemčije in Japonske, da bi dosegli večje povpraševanje po točnosti izdelkov.
